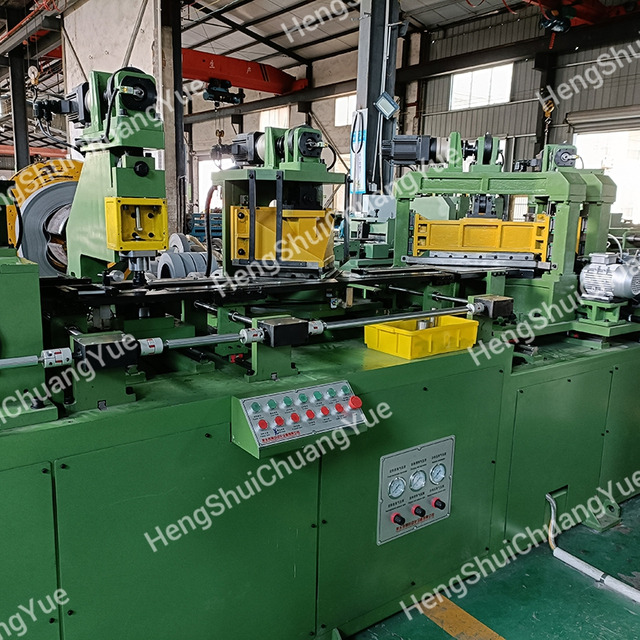

The high precision silicon steel cut-to-length line engineered by CHUANGYUE represents a pivotal advancement in electrical transformer manufacturing equipment. Designed specifically to transform grain-oriented silicon steel coils into perfectly sheared, punched, and notched core laminations, this high precision silicon steel cut-to-length line delivers exceptional operational stability and material efficiency. Modern transformer production demands strict geometric tolerance, low material burr levels, and minimal core loss. To address these demands, our high precision silicon steel cut-to-length line integrates advanced servo-driven feed systems, heavy-duty punching units, precision swinging shears, and automated stacking modules. Whether producing power transformer cores, distribution transformer cores, or specialized reactor cores, the high precision silicon steel cut-to-length line optimizes every stage of the coil processing workflow to boost overall productivity while keeping material waste to an absolute minimum.
Every high precision silicon steel cut-to-length line manufactured by CHUANGYUE is built upon a modular architecture designed for high rigidity, thermal stability, and long-term durability. By incorporating top-tier mechanical and electronic controls, the high precision silicon steel cut-to-length line ensures consistent repeatability during high-speed continuous operation.
Heavy-Duty Double-Head Uncoiler Unit: The high precision silicon steel cut-to-length line utilizes a dual-head decoiling mechanism that allows operator preparation of the next silicon steel coil while the current coil is actively processing, drastically reducing coil loading downtime.
High-Precision Servo Feeding Mechanism: Driven by premium AC servo motor systems and anti-wear feeding rollers, the high precision silicon steel cut-to-length line feeds thin silicon steel sheets with extreme dimensional precision and zero surface scratching.
Multi-Axis V-Punching and Hole-Punching Stations: The high precision silicon steel cut-to-length line incorporates specialized hydraulic or servo-driven V-notch punches and hole punchers to form precise center holes, corner notches, and alignment features.
Precision Swing Shear Module: Equipped with tungsten carbide blades or specialized tool steel cutters, the high precision silicon steel cut-to-length line achieves ultra-clean 45 degree and 135 degree miter shearing with minimal burr height.
Central Positioning Channel and Loop Pit: Maintains sheet tracking alignment throughout the high precision silicon steel cut-to-length line to eliminate lateral deviation during high-speed cutting sequences.
Magnetic Adsorption Auto-Stacking System: The high precision silicon steel cut-to-length line features magnetic or pneumatic stackers that neatly stack finished laminations into step-lap configurations ready for direct transformer assembly.
The operational workflow of the high precision silicon steel cut-to-length line is fully automated from uncoiling to final lamination discharge. Controlled via an intuitive PLC touchscreen interface, the high precision silicon steel cut-to-length line synchronizes multiple mechanical movements simultaneously to achieve seamless step-lap core processing.
Uncoiling and Loop Buffer: The silicon steel coil is mounted on the uncoiler, and sheet tension is regulated by photo-electric loop sensors to prevent sheet stretching.
Guiding and Feeding: The high precision silicon steel cut-to-length line guides the strip into the central positioning channel, aligning the material centerline.
Punching and Notching: Based on pre-programmed lamination parameters, the high precision silicon steel cut-to-length line executes precise V-punching and hole-punching operations.
Angular Shearing: The swing shear cuts straight or miter angles in synchronization with sheet feeding, producing various step-lap lamination geometries.
Conveying and Stacking: The high precision silicon steel cut-to-length line transfers cut laminations via magnetic belt conveyors to designated stacking tables for manual or robotic pick-and-place core assembly.
To provide clear operational parameters for engineering teams and procurement specialists, the performance metrics of the high precision silicon steel cut-to-length line are outlined in the data table below:
| Technical Parameter | Standard Range / Specification |
| Suitable Material | Grain-Oriented (CRGO) & Non-Oriented Silicon Steel Coils |
| Material Thickness Range | 0.18 mm – 0.35 mm |
| Maximum Strip Width | 200 mm / 300 mm / 400 mm / 600 mm (Customizable) |
| Max Line Processing Speed | Up to 120 m/min – 150 m/min |
| Length Cutting Accuracy | ± 0.1 mm |
| Angle Shearing Accuracy | ± 0.05° |
| Shearing Burr Height | ≤ 0.02 mm |
| Control System | Siemens / Mitsubishi PLC with Industrial Touchscreen |
| Stacking Method | Automatic Magnetic Adsorption Stacking / Pneumatic Guide |
The high precision silicon steel cut-to-length line is specially engineered to meet the manufacturing demands of various global power and industrial sectors:
Power Distribution Transformer Cores: The high precision silicon steel cut-to-length line produces high-efficiency step-lap core sheets that dramatically lower no-load loss and noise levels in oil-immersed and dry-type distribution transformers.
Large Power Transformer Core Fabrication: High-capacity configurations of the high precision silicon steel cut-to-length line handle wider silicon steel strips required for high-voltage power transmission transformer cores.
Reactor and Special Transformer Cores: For specialized industrial applications, the high precision silicon steel cut-to-length line delivers flexible punching and cutting routines suitable for single-phase reactors, traction transformers, and renewable energy substations.
New Energy Motor Laminations: Adaptable settings on the high precision silicon steel cut-to-length line allow precise sheet preparation for industrial motors and electric vehicle transformer components.
Investing in a high precision silicon steel cut-to-length line from CHUANGYUE delivers immediate production advantages. The high precision silicon steel cut-to-length line reduces material loss through optimized cut nesting, reduces manual labor through automated lamination stacking, and extends die life with ultra-precise tool alignment. Built with high quality componentry and supported by dedicated technical service, our high precision silicon steel cut-to-length line provides transformer manufacturers worldwide with a reliable, cost-effective automation solution for continuous mass production.
